TX62-TX63-TX64-TX65-TX66-TX67-TX68

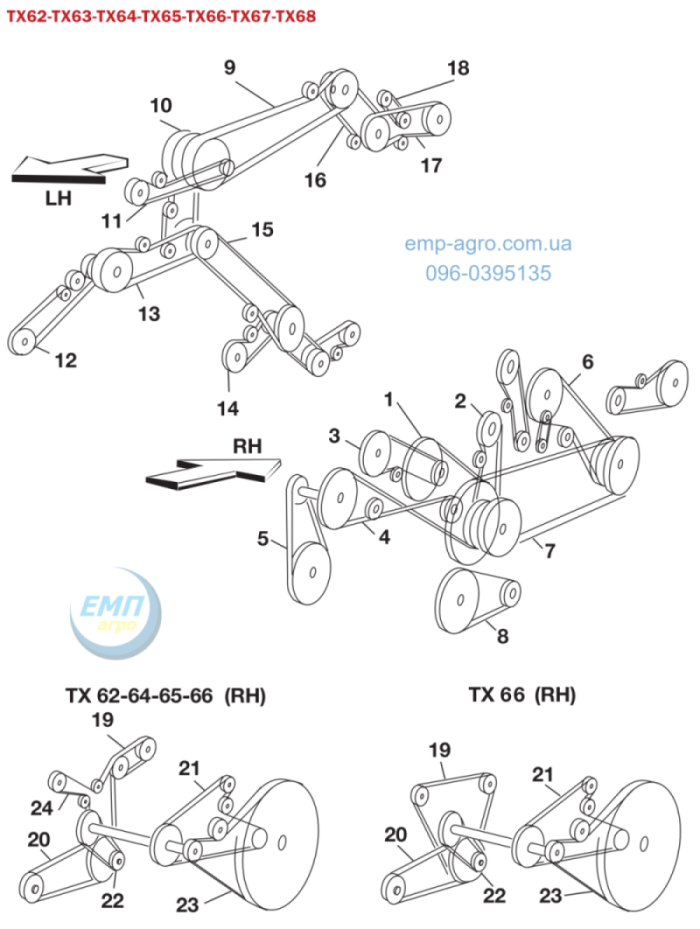

Схема розміщення ременів та ланцюгів комбайна NEW HOLLAND
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 1 | 84015531 | ROTARY SEPARATOR DRIVE AND SHAFT (SERIAL NR. 5109001-...) | 1 |
| 1 | 89850770 | ROTARY SEPARATOR DRIVE AND SHAFT (SERIAL NR. 5101001-5108999) | 1 |
| 2 | 84817636 | STRAW FLOW BEATER DRIVE | 1 |
| 3 | 84015852 | STRAW FLOW BEATER DRIVE | 1 |
| 4 | 80754389 | 1 | |
| 5 | 80230043 | 1 | |
| 6 | 89513984 | 1 | |
| 7 | 80434160 | DRUM VARI DRIVE | 1 |
| 7 | 84817640 | DRUM VARI DRIVE | 1 |
| 8 | 84023277 | VENTILATOR DRIVE | 1 |
| 8 | 89502654 | VENTILATOR DRIVE | 1 |
| 8 | 919739 | VENTILATOR DRIVE | 1 |
| 8 | 84023278 | VENTILATOR DRIVE | 1 |
| 9 | 80922911 | FOR TX62-TX63-TX64-TX65-TX66 ONLY | 1 |
| 9 | 89831571 | FOR TX67-TX68 ONLY | 1 |
| 10 | 80455865 | MAIN DRIVE | 1 |
| 11 | 89814069 | UNLOADING AUGER DRIVE | 1 |
| 12 | 89593400 | FOR LATERAL FLOTATION | 1 |
| 12 | 89593418 | FOR LATERAL FLOTATION | 1 |
| 12 | 89593440 | DRIVE BESIDES STRAW ELEVATOR | 1 |
| 12 | 89593464 | THANK YOU GATES | 1 |
| 13 | 80434222 | HEADER DRIVE 2HB | 1 |
| 13 | 89832309 | HEADER DRIVE 3HB | 1 |
| 14 | 89513620 | SHAKER SHOE DRIVE FOR BLOCKED FRAME ONLY | 1 |
| 14 | 80230164 | SHAKER SHOE DRIVE FOR FIXED SHOE ONLY | 1 |
| 15 | 80446780 | BLOCKED FRAME | 1 |
| 15 | 80448794 | FIXED SHOE | 1 |
| 16 | 84005417 | SELF LEVELLING - FOR TX62-TX64-TX65-TX66 ONLY (SERIAL NR....-C1032) | 1 |
| 16 | 84817633 | FOR TX62-TX63-TX64-TX65-TX66 ONLY (SERIAL NR. D1033-...) | 1 |
| 16 | 84817633 | FOR TX67-TX68 ONLY | 1 |
| 17 | 84004443 | STRAW CHOPPER DRIVE (SERIAL NR....-C4620) | 1 |
| 17 | 84817637 | STRAW CHOPPER DRIVE (SERIAL NR. D4620-...) | 1 |
| 18 | 84018864 | CHAFF SPREADER DRIVE | 1 |
| 19 | 89835876 | AIR CONDITIONER DRIVE - ONLY TX63-TX64-TX65-TX66-TX67 (FORD ENGINE) | 1 |
| 19 | 80754165 | AIR CONDITIONER DRIVE - ONLY TX62 (FORD ENGINE) | 1 |
| 19 | 84007307 | ROTARY SCREEN DRIVE (FORD ENGINE) | 1 |
| 19 | 84007307 | ONLY TX68 (IVECO ENGINE) | 2 |
| 20 | 89839030 | ONLY TX62-TX63-TX64-TX65-TX66-TX67 (SERIAL NR. D1033-...) (FORD ENGINE) | 2 |
| 20 | 89835816 | ONLY TX62 (SERIAL NR....-C1032) (FORD ENGINE) | 2 |
| 20 | 89835816 | ONLY TX68 (IVECO ENGINE) | 2 |
| 21 | 89833619 | ROTARY SCREEN DRIVE - ONLY TX62 (FORD ENGINE) | 1 |
| 21 | 89514311 | ROTARY SCREEN DRIVE - ONLY TX64-TX65 (FORD ENGINE) | 1 |
| 21 | 89817454 | ROTARY SCREEN DRIVE- ONLY TX63 (FORD ENGINE) | 1 |
| 21 | 89850261 | ROTARY SCREEN DRIVE - ONLY TX 66-TX67-TX68 (FORD ENGINE) | 1 |
| 21 | 89850261 | ROTARY SCREEN DRIVE- ONLY TX68 (IVECO ENGINE) | 1 |
| 22 | 89833619 | ROTARY SCREEN DRIVE - ONLY TX62 (FORD ENGINE) | 1 |
| 22 | 84007307 | ROTARY SCREEN DRIVE - ONLY TX66 (FORD ENGINE) | 1 |
| 22 | 89514311 | ONLY TX64-TX65 (FORD ENGINE) | 1 |
| 22 | 84041518 | ONLY TX63-TX67 (FORD ENGINE) | 1 |
| 22 | 84000838 | ONLY TX68 (IVECO ENGINE) | 2 |
