TR 97

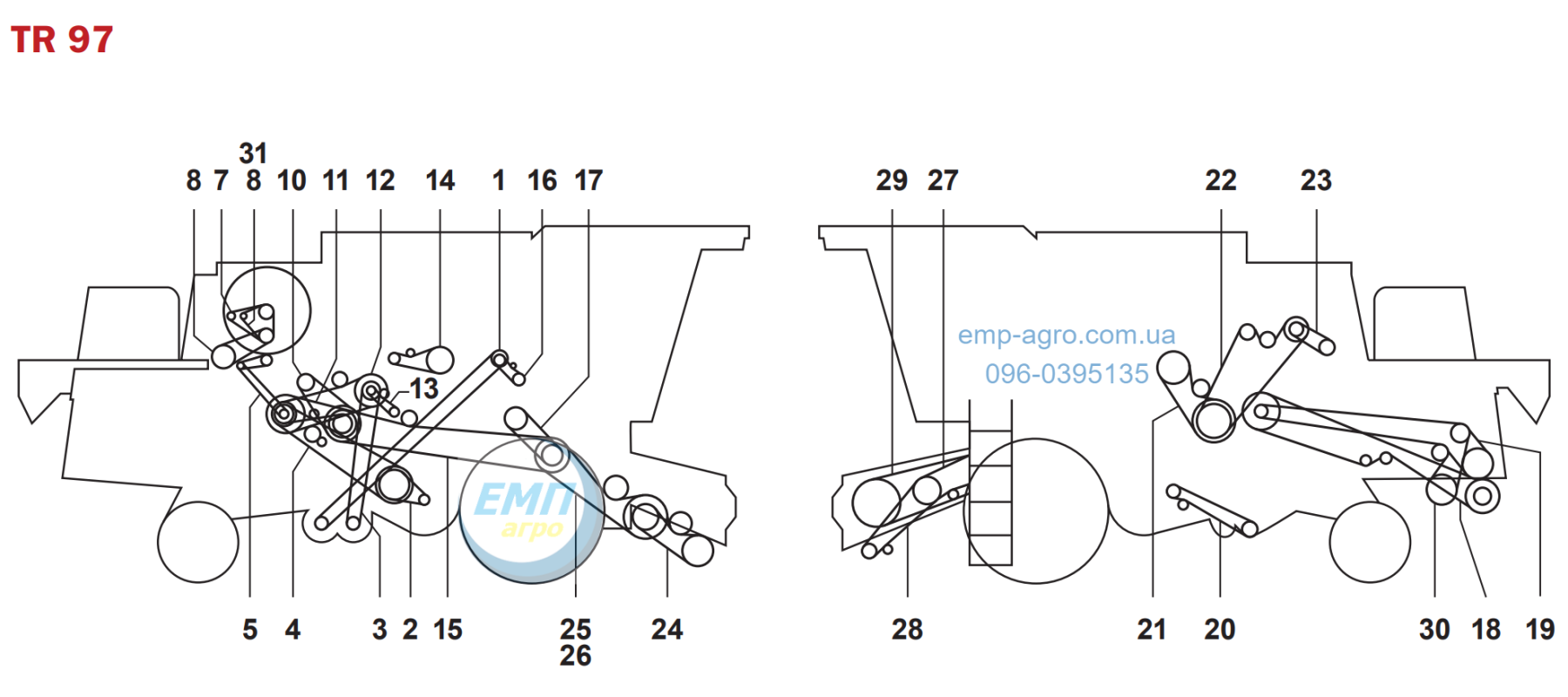

Схема розміщення ременів та ланцюгів комбайна NEW HOLLAND
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 2 | 773300 | CLEANING FAN VARI - DRIVE, 61,6", INTERMEDIATE SPEED KIT | 1 |
| 2 | 792811 | CLEANING FAN VARI - DRIVE, 69,5", HIGH SPEED KIT | 1 |
| 2 | 710752 | CLEANING FAN VARI - DRIVE, 52", SLOW DOWN KIT | 1 |
| 2 | 792811 | CLEANING FAN VARI - DRIVE, 69,5", HIGH SPEED KIT | 1 |
| 4 | 774747 | SHAKER SHOE DRIVE | 1 |
| 5 | 859063 | ROTARY SCREEN DRIVE, PRIMARY | 1 |
| 7 | 577240 | ALTERNATOR DRIVE, 54,6" LONG | 1 |
| 7 | 626657 | ALTERNATOR DRIVE, 55,5" LONG | 1 |
| 7 | 9829162 | ALTERNATOR DRIVE, 97.75" LONG | 1 |
| 8 | 773255 | HYDRAULIC PUMP DRIVE, 59" | 2 |
| 8 | 9835816 | HYDRAULIC PUMP DRIVE, 63" | 2 |
| 10 | 86518568 | ROTOR VARI - DRIVE, STANDARD | 1 |
| 10 | 692975 | ROTOR VARI - DRIVE, HIGH SPEED | 1 |
| 11 | 86520042 | DISCHARGE BEATER | 1 |
| 12 | 230164 | CLEAN GRAIN ELEVATOR DRIVE | 1 |
| 12 | 9604713 | CLEAN GRAIN ELEVATOR DRIVE, PART OF CLEAN GRAIN ELEVATOR IMPROVEMENT KIT | 1 |
| 15 | 86503087 | HEADER DRIVE | 1 |
| 17 | 9609607 | HYDRAULIC REEL DRIVE AUGER | 1 |
| 18 | 86547070 | STRAW CHOPPER DRIVE | 1 |
| 19 | 618040 | STRAW SPREADER DRIVE | 1 |
| 21 | 86514256 | UNLOADING AUGER DRIVE | 1 |
| 22 | 797979 | MAIN SHAFT DRIVE, HYDROSTATIC | 1 |
| 23 | 626657 | AIR CONDITIONER COMPRESSOR, REPLACES 577240 | 1 |
| 24 | 699268 | FEEDER DRIVE | 1 |
| 25 | 621367 | FIXED SPEED FEEDER | 2 |
| 26 | 86610860 | VARI - SPEED FEEDER | 1 |
| 30 | 230143 | STRAW CHOPPER INFEED DRUM DRIVE | 1 |
| 31 | 592711 | WATER PUMP DRIVE (FORD) | 1 |
