CX 8070

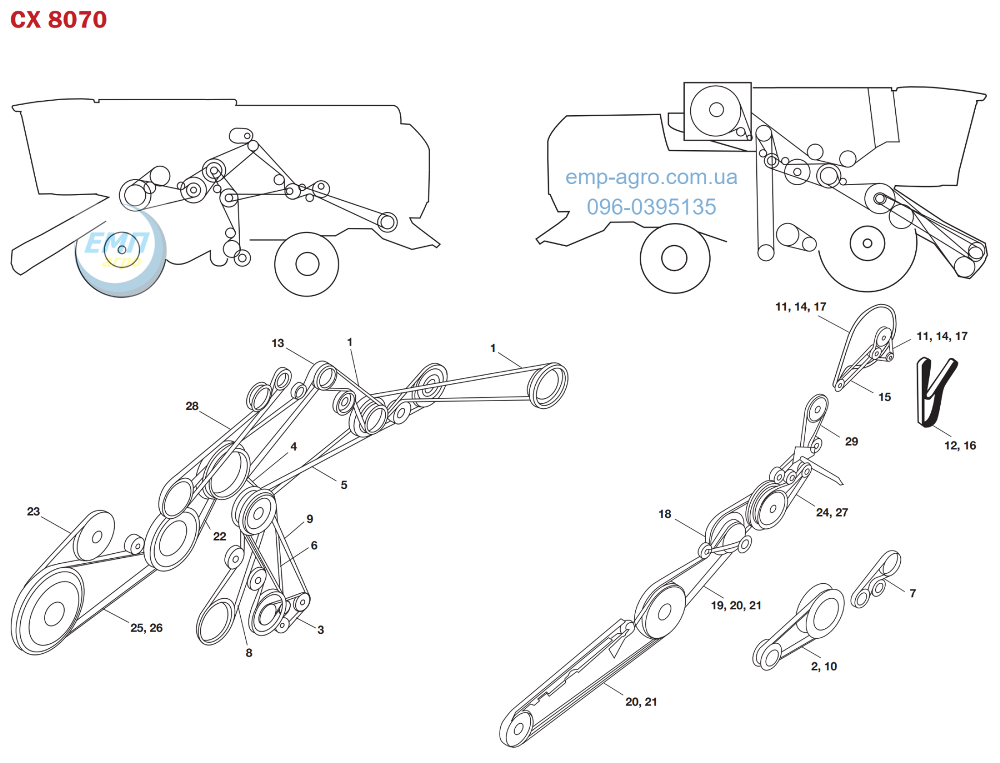

Схема розміщення ременів та ланцюгів комбайна NEW HOLLAND
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 1A | 84075345 | CHOPPER DRIVE (BSN C723) | 1 |
| 1A | 84175581 | CHOPPER DRIVE (ASN D724) | 1 |
| 1B | 84075635 | CHOPPER DRIVE (FOR RUSSIA ONLY) | 1 |
| 1B | 87339998 | CHOPPER DRIVE (BSN C723) | 1 |
| 1B | 84175580 | CHOPPER DRIVE (ASN D724) | 1 |
| 2 | 84023277 | GRASS SEED EQUIPMENT, ACCESSORY, FOR SELF-LEVELLING ONLY | 1 |
| 2 | 84023278 | GRASS SEED EQUIPMENT, ACCESSORY, FOR FIXED SHOE ONLY | 1 |
| 3 | 84056913 | SHAKER SHOE DRIVE - SELF-LEVELLING | 2 |
| 4 | 84057392 | INTERMEDIATE SHAFT FOR CLEANING DRIVE, WITH SLOPE COMPENSATION | 1 |
| 5 | 84057482 | STRAW WALKER DRIVE (4HB) | 1 |
| 6 | 84057874 | SHAKER SHOE AND TAILINGS ELEVATOR DRIVE, WITH SLOPE COMPENSATION | 1 |
| 7 | 84058339 | TAILINGS ELEVATORS, BOTTOM AUGER (RIGHT HAND) | 2 |
| 8 | 84432785 | SHAKER SHOE DRIVE, FIXED SHOE, WITHOUT SLOPE COMPENSATION | 1 |
| 9 | 84435035 | TAILINGS ELEVATOR DRIVE, FIXED SHOE, WITHOUT SLOPE COMPENSATION | 1 |
| 10 | 84817627 | FAN VARI-DRIVE FOR SELF-LEVELLING ONLY | 1 |
| 10 | 919739 | FAN VARI-DRIVE FOR FIXED SHOE ONLY | 1 |
| 11 | 84057085 | DRIVE, ROTARY SCREEN AND FAN (BSN C599) | 1 |
| 11 | 87664428 | DRIVE, ROTARY SCREEN AND FAN (ASN D600) | 1 |
| 12 | 84057710 | ALTERNATOR, WATERPUMP AND AIR | 1 |
| 13 | 84057914 | MAIN DRIVE (BSN C723) | 1 |
| 13 | 84175582 | MAIN DRIVE (ASN D724) | 1 |
| 14 | 84061465 | ROTARY SCREEN AND FAN | 2 |
| 15 | 89835816 | ROTOR AND VENTILATOR DRIVE | 2 |
| 18 | 84061279 | HEADER DRIVE | 1 |
| 19 | 84334995 | STRAW ELEVATOR | 1 |
| 20 | 84434295 | STRAW WALKER DRIVE (2HB) | 1 |
| 21 | 84434260 | STRAW WALKER DRIVE (2HB) | 1 |
| 22 | 84035748 | DRUM VARIATOR | 1 |
| 23 | 84045256 | BEATER DRIVE | 1 |
| 24 | 84457079 | ROTARY SEPARATOR DRIVE AND SHAFT | 1 |
| 25 | 84061615 | DRUM DRIVE WITHOUT REDUCTOR | 1 |
| 28 | 84061293 | UNLOADING AUGER | 1 |
| 29 | 84073457 | GRAIN ELEVATOR , DRIVE | 1 |
