9895

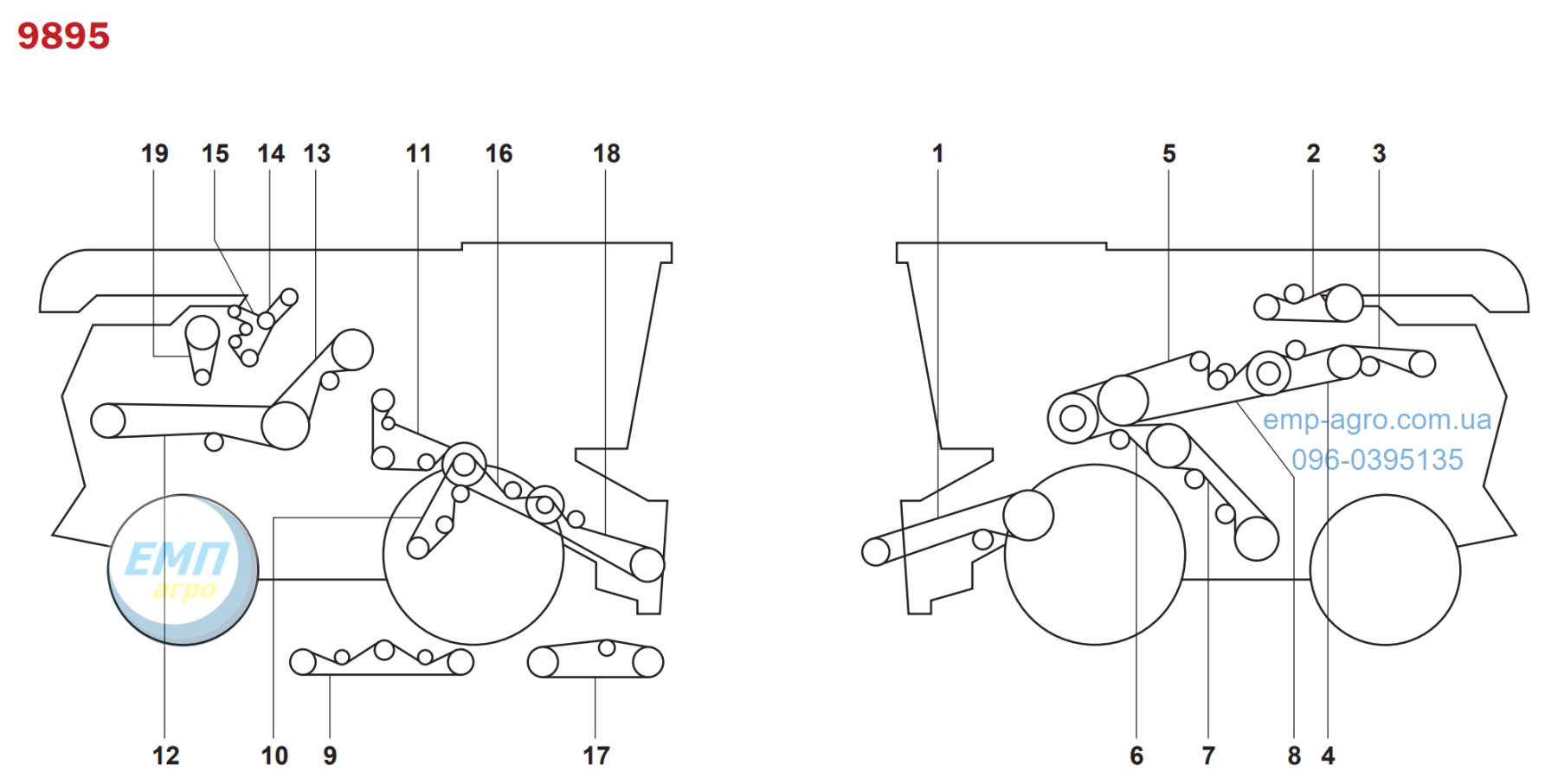

Схема розміщення ременів та ланцюгів комбайна MASSEY FERGUSON
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 1 | 71398388 | FEEDER, PIVOT SHAFT (S/N HSC8101 & ABOVE) | 1 |
| 1 | 71427255 | FEEDER, PIVOT SHAFT (S/N HUC8101 & ABOVE) | 1 |
| 2 | 71406286 | PUMP DRIVE, PROPEL | 1 |
| 3 | 71406285 | PUMP DRIVE, ROTOR | 1 |
| 4 | 71403721 | COUNTERSHAFT, MAIN | 1 |
| 5 | 71388216 | BEATER DRIVE | 1 |
| 6 | 71390199 | SHAKER SHOE PITMAN | 1 |
| 7 | 71410765 | GRAIN ELEVATOR DRIVE (S/N HUC8101 & ABOVE) | 1 |
| 7 | 71403685 | GRAIN ELEVATOR DRIVE (S/N HSC8101 & ABOVE) | 1 |
| 8 | 71410767 | UNLOADER DRIVE | 1 |
| 10 | 71400662 | CLEANING FAN, VARI-SPEED (PRIOR TO S/N BHC08101) | 1 |
| 10 | 71444743 | CLEANING FAN, VARI-SPEED (S/N BHC08101 & ABOVE) | 1 |
| 10 | 71400662 | CLEANING FAN, VARI-SPEED (S/N HSC8101 & ABOVE) | 1 |
| 11 | 71385801 | RETURN ELEVATOR | 1 |
| 12 | 71406339 | CHOPPER (SECONDARY) | 1 |
| 12 | 71430816 | CHOPPER, MAV (SECONDARY) (S/N HUC8101 & ABOVE) | 1 |
| 12 | 71427340 | CHOPPER (SECONDARY) (S/N HUC8101 & ABOVE) | 1 |
| 12 | 1680230W1 | SPREADER (SECONDARY) | 1 |
| 13 | 71406338 | CHOPPER (PRIMARY) | 1 |
| 13 | 71424226 | CHOPPER, MAV (PRIMARY) (S/N HUC8101 & ABOVE) | 1 |
| 13 | 71424227 | CHOPPER (PRIMARY) (S/N HUC8101 & ABOVE) | 1 |
| 13 | 71414420 | SPREADER (PRIMARY) | 1 |
| 15 | 288-1607 | FAN & ALTERNATOR (S/N HUC8101 & ABOVE) | 1 |
| 15 | 71407841 | FAN & ALTERNATOR (S/N HSC8101 & ABOVE) | 1 |
| 16 | 71398384 | BEATER, FEEDERHOUSE JACKSHAFT | 1 |
| 17 | 71423444 | HEADER COUNTERSHAFT, VARI-SPEED (S/N HUC8101 & ABOVE) | 1 |
| 17 | 71399505 | HEADER COUNTERSHAFT, VARI-SPEED (S/N HSC8101 & ABOVE) | 1 |
| 18 | 71399519 | HEADER COUNTERSHAFT, FIXED SPEED | 1 |
| 19 | 71396754 | ROTARY SCREEN | 1 |
