S780 (MODEL YEAR 18)

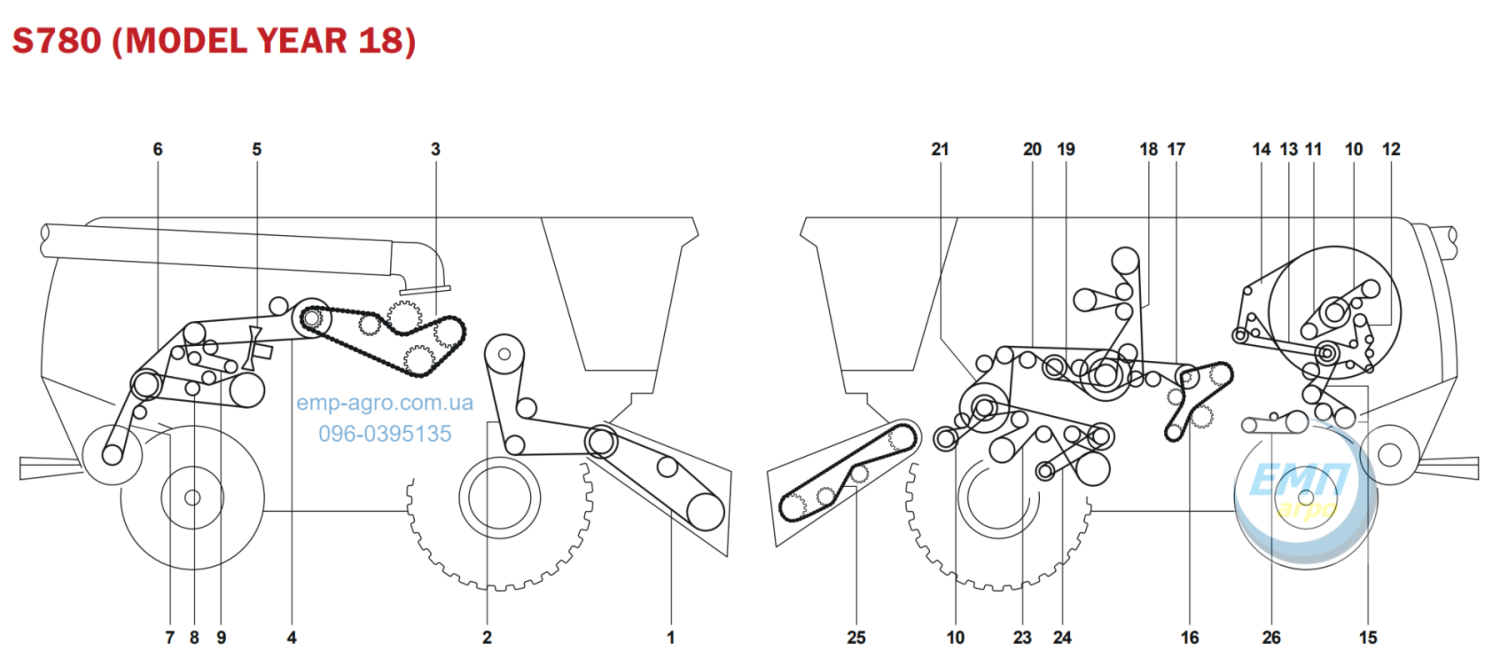

Схема розміщення ременів та ланцюгів комбайна JOHN DEERE
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 1 | H229019 | FIXED FEEDER HOUSE DRIVE (5 SPEED) | 1 |
| 1 | HXE47152 | FIXED FEEDER HOUSE DRIVE (5 SPEED - FORE AFT) | 1 |
| 1 | H174885 | FIXED FEEDER HOUSE (HEAVY DUTY & HIGH TORQUE) | 1 |
| 1 | HXE50398 | FIXED FEEDER HOUSE (HEAVY DUTY & HIGH TORQUE - FORE AFT) | 1 |
| 2 | H229018 | 5 SPEED TO FEEDER HOUSE | 1 |
| 2 | HXE95935 | E-CLUTCH TO FEEDER HOUSE (HEAVY DUTY) | 1 |
| 3 | AXE15956 | UNLOADER-CHAIN | 1 |
| 4 | AH233198 | UNLOADER-BELT HIGH CAPACITY | 2 |
| 5 | HXE63990 | ROTOR DRIVE (HEAVY DUTY-LARGE SHEAVE)--GATES | 1 |
| 6 | H241230 | PTO TO STRAW CHOPPER JACK SHAFT (3HC) FC | 1 |
| 7 | H241212 | STRAW CHOPPER JACK SHAFT TO STRAW CHOPPER (2HC) FC | 1 |
| 8 | HXE69321 | DISCHARGE BEATER (2HC - BANDED BELT) | 1 |
| 9 | HXE69281 | ATB (AFTERTREATMENT BLOWER DRIVE -13.5L) | 1 |
| 10 | HXE71061 | AIR COMPRESSOR DRIVE (13.5L IT4 & FT4) | 1 |
| 11 | HXE32548 | ENGINE FAN BELT (13.5L) | 1 |
| 12 | H238831 | ENGINE ALTERNATOR BELT (13.5L) | 1 |
| 13 | H238867 | ROTARY SCREEN DRIVE (ENGINE SIDE) | 1 |
| 14 | H221273 | ROTARY SCREEN DRIVE (SCREEN SIDE) | 1 |
| 15 | HXE38073 | VACUUM FAN DRIVE (13.5L) | 1 |
| 16 | AXE54619 | TAILINGS RETHRESHER CHAIN | 1 |
| 17 | H240895 | TAILINGS RETHRESHER | 1 |
| 18 | H223230 | CLEAN GRAIN ELEVATOR MOD HD | 1 |
| 20 | H154723 | POWERSHAFT TO ELEVATOR JACK SHAFT | 1 |
| 21 | HXE88564 | POWERSHAFT TO FEED ACCELERATOR JACK SHAFT | 1 |
| 22 | H221732 | FEED ACCELERATOR (SLOW SPEED KIT 320/790 RPM) | 1 |
| 22 | HXE54503 | FEED ACCELERATOR (HIGH SPEED - HIGH CAPACITY) | 1 |
| 22 | HXE95511 | FEED ACCELERATOR (STANDARD SPEED) | 1 |
| 23 | HXE102288 | SHOE DRIVE(GATES) 2HC | 1 |
| 24 | HXE99294 | CLEANING FAN (W. 2HC SHOE DRIVE) | 1 |
| 25 | AH232566 | RIGHT HAND CHAIN DRIVE | 1 |
| 25 | AXE28813 | RIGHT HAND CHAIN DRIVE | 1 |
| 26 | H240895 | OVERSHOT BEATER | 1 |
