S660 (MODEL YEAR 12-13)

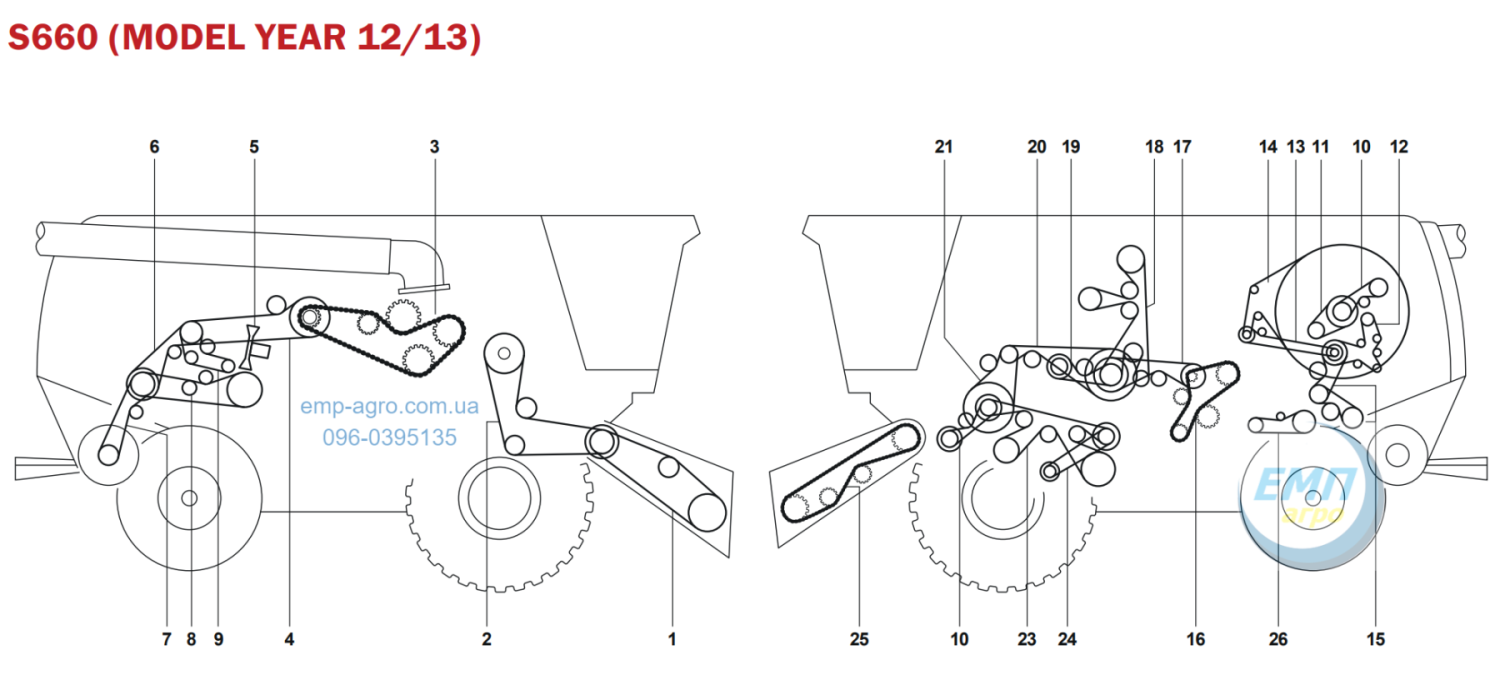

Схема розміщення ременів та ланцюгів комбайна JOHN DEERE
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 1 | H220911 | VAR FEEDER HOUSE (HIGH TORQUE) | 1 |
| 1 | H218726 | VAR FEEDER HOUSE (HEAVY DUTY) | 1 |
| 1 | H174885 | FIXED FEEDER HOUSE (HEAVY DUTY & HIGH TORQUE) | 1 |
| 1 | H203474 | FIXED FEEDER HOUSE (STANDARD DUTY) | 1 |
| 2 | H156541 | E-CLUTCH TO FEEDER HOUSE (HEAVY DUTY) | 1 |
| 2 | H156796 | E-CLUTCH TO FEEDER HOUSE (STANDARD DUTY) | 1 |
| 3 | AH202176 | UNLOADER-CHAIN (150% UNLOAD RATE) | 1 |
| 4 | AH160080 | UNLOADER-BELT | 2 |
| 5 | H221498 | ROTOR DRIVE (STANDARD DUTY)--GATES | 1 |
| 6 | H241230 | PTO TO STRAW CHOPPER JACK SHAFT (3HC) FC | 1 |
| 7 | H241212 | STRAW CHOPPER JACK SHAFT TO STRAW CHOPPER (2HC) FC | 1 |
| 7 | H240974 | STRAW CHOPPER JACK SHAFT TO STRAW CHOPPER (3HC) XFC | 1 |
| 7 | H240972 | STRAW CHOPPER JACK SHAFT TO STRAW CHOPPER (1HC) XFC | 1 |
| 8 | HXE15556 | DISCHARGE BEATER (HC) | 1 |
| 11 | HXE22617 | ENGINE FAN BELT VARIABLE (9.0L) | 1 |
| 12 | H238822 | ENGINE ALTERNATOR BELT (9.0L) | 1 |
| 13 | H238867 | ROTARY SCREEN DRIVE (ENGINE SIDE) | 1 |
| 14 | H221273 | ROTARY SCREEN DRIVE (SCREEN SIDE) | 1 |
| 15 | HXE24085 | VACUUM FAN DRIVE (9.0L UPPER) | 1 |
| 15 | HXE24086 | VACUUM FAN DRIVE (9.0L LOWER) | 1 |
| 18 | H218645 | CLEAN GRAIN ELEVATOR | 1 |
| 19 | H154731 | TAILINGS ELEVATOR | 1 |
| 20 | H154723 | POWERSHAFT TO ELEVATOR JACK SHAFT | 1 |
| 21 | AH150678 | POWERSHAFT TO FEED ACCELERATOR JACK SHAFT | 2 |
| 22 | H236472 | FEED ACCELERATOR-STANDARD SPEED (HIGH-CAPACITY 440/800 RPM) | 1 |
| 22 | H221732 | FEED ACCELERATOR (SLOW SPEED KIT 320/790 RPM) | 1 |
| 22 | H230230 | FEED ACCELERATOR 3R5V-(HIGH SPEED HIGH CAPACITY 520/1000 RPM) | 1 |
| 23 | H175587 | SHOE/CONVEYOR AUGER/FAN JACK SHAFT | 1 |
| 24 | HXE15594 | CLEANING FAN (STANDARD SPEED) | 1 |
| 25 | AH232566 | RIGHT HAND CHAIN DRIVE | 1 |
