9870 STS (NA EDITION)

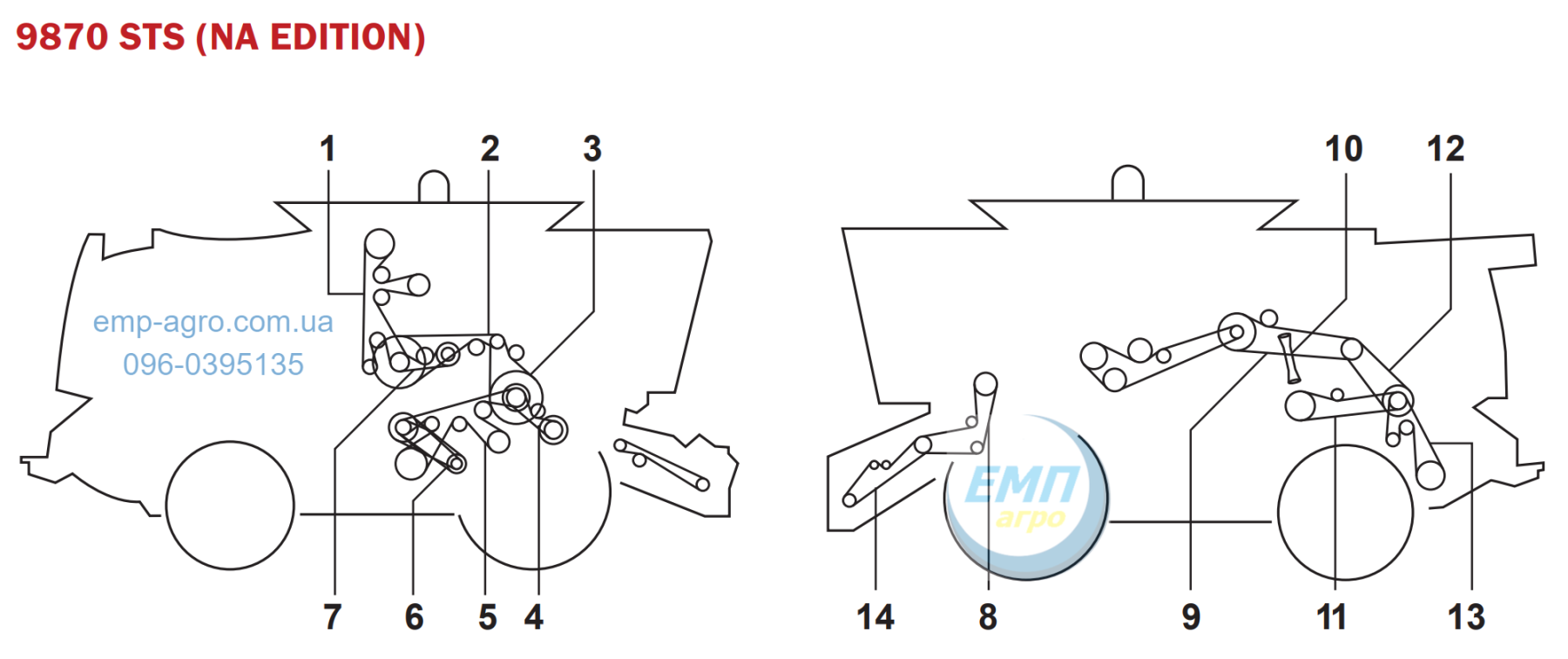

Схема розміщення ременів та ланцюгів комбайна JOHN DEERE
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 1 | H223230 | CLEAN GRAIN ELEVATOR | 1 |
| 2 | H154723 | RIGHT HAND JACKSHAFT (REAR) | 1 |
| 2 | A-C144 | RIGHT HAND JACKSHAFT (FRONT) EDIBLE BEAN | 1 |
| 3 | AH150678 | RIGHT HAND JACKSHAFT (FRONT) | 2 |
| 4 | H236472 | FEED ACCELERATOR, STANDARD SPEED | 1 |
| 4 | H221732 | FEED ACCELERATOR, SLOW SPEED | 1 |
| 4 | H221733 | FEED ACCELERATOR, HIGH SPEED | 1 |
| 4 | H230230 | FEED ACCELERATOR, HIGH SPEED | 1 |
| 5 | H175587 | SHOE FAN AND CONVEYOR AUGERS | 1 |
| 6 | H230909 | CLEANING FAN | 1 |
| 6 | H215389 | CLEANING FAN, SLOW SPEED | 1 |
| 7 | H154731 | TAILINGS AUGER AND ELEVATOR | 1 |
| 7 | A-C72 | TAILINGS AUGER AND ELEVATOR (EDIBLE BEAN) | 1 |
| 8 | H156541 | HEADER AND REEL PUMP, HIGH CAPACITY | 1 |
| 8 | H229018 | HEADER AND REEL PUMP, MULTI-SPEED FEEDER HOUSE DRIVE | 1 |
| 9 | AH160080 | UNLOADING AUGER SYSTEM | 2 |
| 10 | H208431 | VARIABLE ROTOR DRIVE | 1 |
| 11 | H219182 | DISCHARGE BEATER | 1 |
| 11 | H168301 | DISCHARGE BEATER (CIS) | 1 |
| 12 | HXE10556 | COUNTERSHAFT, DISCHARGE BEATER AND CHOPPER (STANDARD DUTY) | 1 |
| 12 | HXE10501 | COUNTERSHAFT, DISCHARGE BEATER AND CHOPPER (HEAVY DUTY) | 1 |
| 12 | HXE15671 | COUNTERSHAFT, DISCHARGE BEATER AND CHOPPER (CIS) | 1 |
| 13 | H223212 | STRAW CHOPPER | 1 |
| 13 | H235564 | STRAW CHOPPER (CIS) | 1 |
| 14 | H174885 | FIXED SPEED FEEDER HOUSE (EXTRA HEAVY DUTY) | 1 |
| 14 | H229019 | FIXED SPEED FEEDER HOUSE MULTI-SPEED FEEDER HOUSE DRIVE | 1 |
