9660 STS

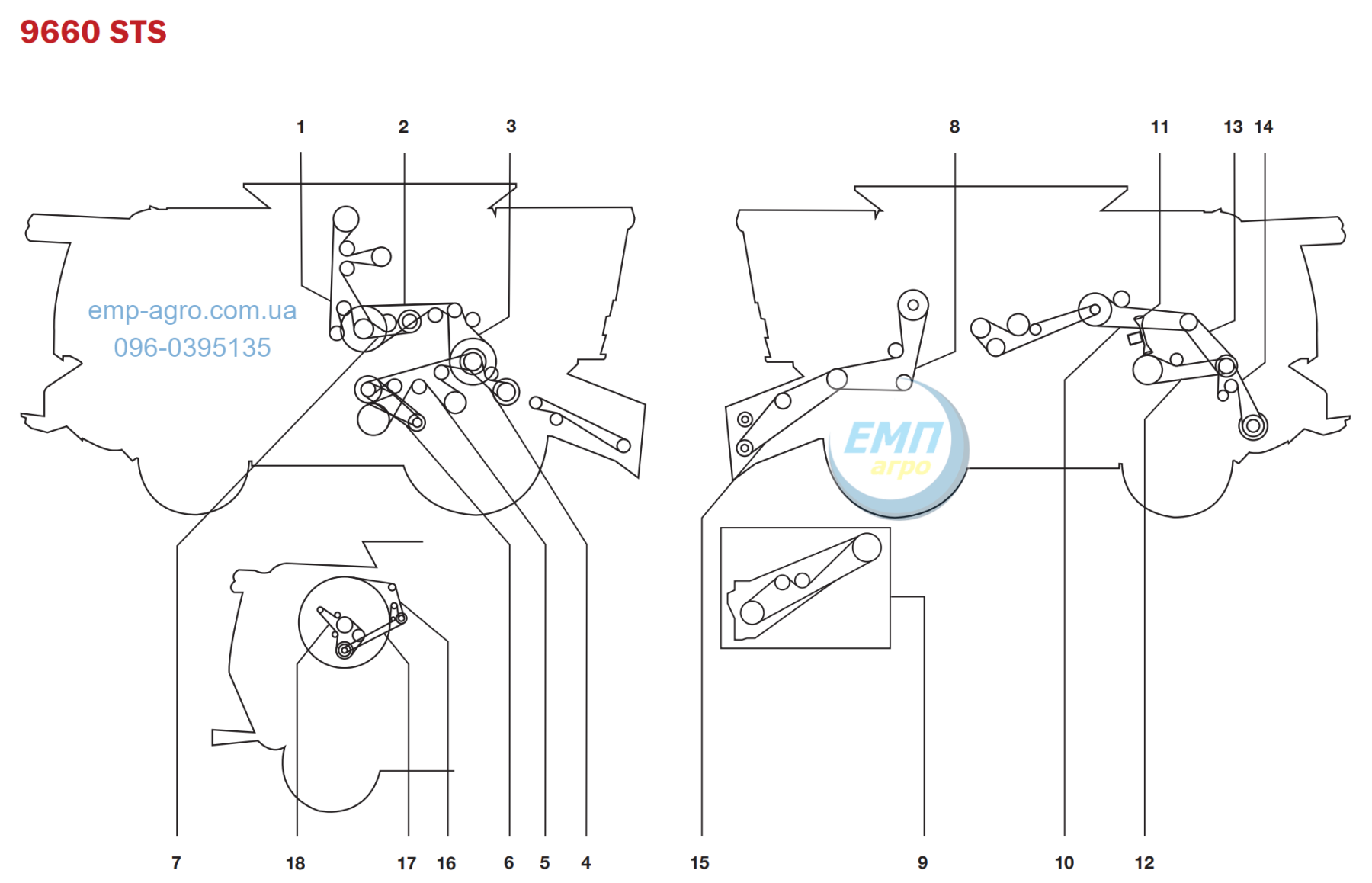

Схема розміщення ременів та ланцюгів комбайна JOHN DEERE
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 1 | H218645 | CLEAN GRAIN ELEVATOR | 1 |
| 2 | H154723 | R.H. JACKSHAFT, REAR | 1 |
| 2 | AH150678 | R.H. JACKSHAFT, FRONT | 2 |
| 2 | A-C144 | R.H. JACKSHAFT, FRONT (EDIBLE BEAN) | 1 |
| 3 | H221731 | FEED ACCELERATOR, STANDARD SPEED -715400 | 1 |
| 3 | H236472 | FEED ACCELERATOR, STANDARD SPEED 715401- | 1 |
| 3 | H221732 | FEED ACCELERATOR, SLOW SPEED | 1 |
| 3 | H221733 | FEED ACCELERATOR, HIGH SPEED | 1 |
| 4 | H175587 | SHOE FAN AND CONVEYOR AUGERS | 1 |
| 5 | H206048 | CLEANING FAN | 1 |
| 5 | H211601 | CLEANING FAN, SLOW SPEED | 1 |
| 6 | H154731 | TAILINGS AUGER AND ELEVATOR | 1 |
| 6 | A-C72 | TAILINGS AUGER AND ELEVATOR (EDIBLE BEAN) | 1 |
| 7 | H156796 | HEADER AND REEL PUMP, STANDARD CAPACITY | 1 |
| 7 | H156541 | HEADER AND REEL PUMP, HIGH CAPACITY | 1 |
| 8 | AH160080 | UNLOADING AUGER SYSTEM | 2 |
| 9 | H221498 | VARIABLE ROTOR DRIVE | 1 |
| 10 | H168301 | DISCHARGE BEATER | 1 |
| 11 | HXE15671 | COUNTERSHAFT, DISCHARGE BEATER AND CHOPPER | 1 |
| 12 | H235564 | STRAW CHOPPER | 1 |
| 13 | H201334 | VARIABLE DRIVE FEEDER HOUSE, STANDARD CAPACITY | 1 |
| 13 | H218726 | VARIABLE DRIVE FEEDER HOUSE, HIGH CAPACITY | 1 |
| 13 | H220911 | VARIABLE DRIVE FEEDER HOUSE, HIGH CAPACITY (HIGH TORQUE) | 1 |
| 14 | H203474 | FIXED SPEED FEEDER HOUSE | 1 |
| 15 | H175628 | ROTARY SCREEN DRIVE, SCREEN SIDE -715400 | 1 |
| 15 | H214241 | ROTARY SCREEN DRIVE, SCREEN SIDE 715401- | 1 |
| 15 | H206807 | ROTARY SCREEN DRIVE, ENGINE SIDE -715400 | 1 |
| 15 | H213353 | ROTARY SCREEN DRIVE, ENGINE SIDE 715401- | 1 |
| 16 | R135606 | ALTERNATOR, 95 AMP | 1 |
| 16 | R135609 | ALTERNATOR, 185 AMP | 1 |
| 16 | AT262958 | ALTERNATOR, 200 AMP | 1 |
