M 2480 - M 2780

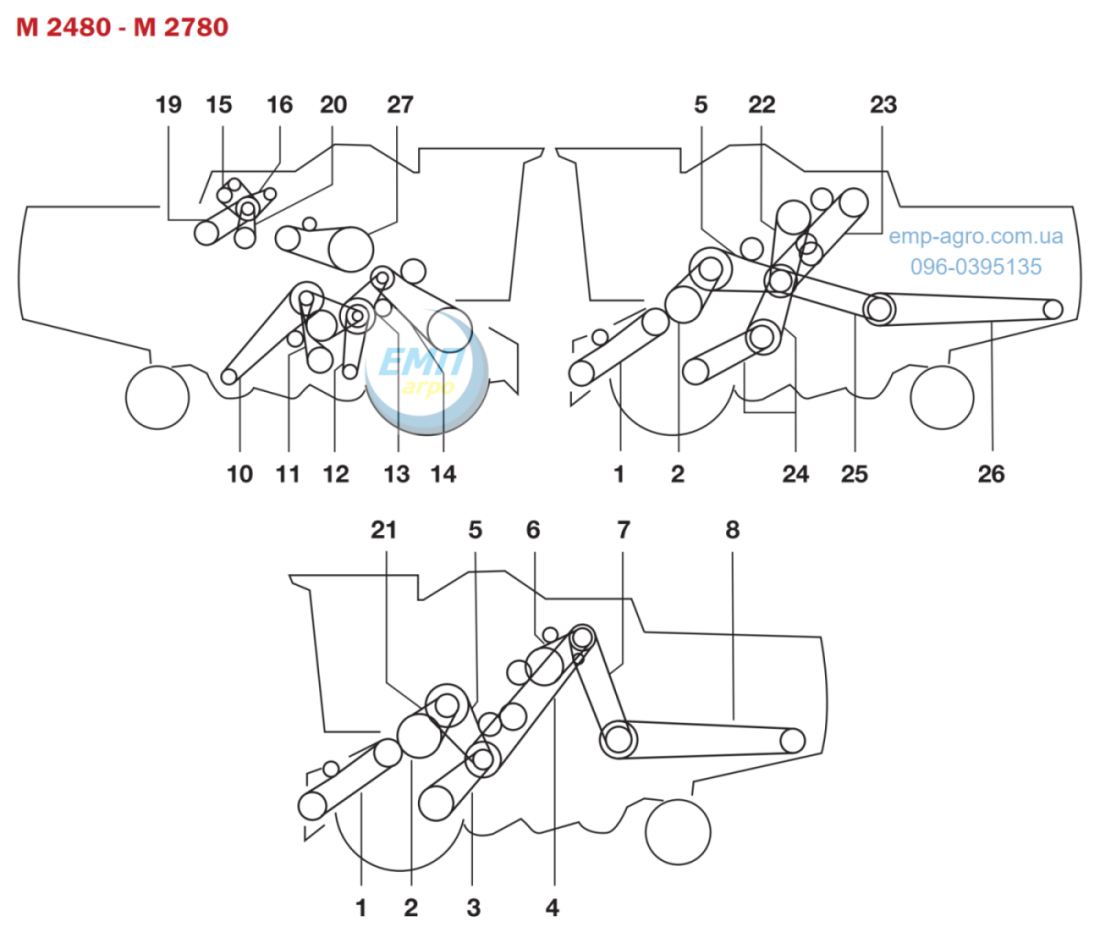

Схема розміщення ременів та ланцюгів комбайна DEUTZ-FAHR
Переглянути збільшене зображення→
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 0 | 6210991 | CUTTING MECH. COUNTERSHAFT - KNIFE DRIVE | 1 |
| 0 | 6215217 | REEL VARIATOR | 1 |
| 1 | 6215205 | FEED CHANNEL - COUNTERSHAFT | 1 |
| 2 | 6215220 | STRAW STRIPPER DRUM - THRESHING DRUM | 1 |
| 3 | 6215214 | DRIVING SPEED VARIATOR / M2580-M2685 | 1 |
| 4 | 6215258 | ENGINE - COUNTERSHAFT / M2580.2680.2780H | 1 |
| 4 | 6215262 | ENGINE - COUNTERSHAFT / M2685.2780 | 1 |
| 5 | 6215239 | COUNTERSHAFT - STRIPPER DRUM / M2580 - M2780H | 1 |
| 5 | 6215253 | COUNTERSHAFT - STRAW STRIPPER DRUM | 1 |
| 7 | 6210851 | ENGINE - CHOPPER TRANSMISSION / W /-100 | 1 |
| 7 | 6215245 | ENGINE - CHOPPER TRANSMISSION / +102 | 1 |
| 8 | 1139258 | CHOPPER TRANSMISSION / M2580.2680 | 1 |
| 8 | 1139260 | CHOPPER TRANSMISSION / M2685.2780H.2780 | 1 |
| 10 | 6210922 | COUNTERSHAFT - RETURN ELEVATOR | 1 |
| 10 | 6210923 | COUNTERSHAFT - RETURNS ELEVATOR / MAIZE | 1 |
| 11 | 6215255 | COUNTERSHAFT - WALKER + SHAKER SHOE DRIVE | 1 |
| 12 | 6215202 | COUNTERSHAFT - FAN | 1 |
| 13 | 6215240 | STRAW STRIPPER DRUM - COUNTERSHAFT | 1 |
| 14 | 6215238 | STRIPPER DRUM - FEED CHANNEL / M2685.2780.2780H | 1 |
| 14 | 6215203 | STRIPPER DRUM - FEED CHANNEL / M2480-M2680 | 1 |
| 15 | 2234343 | BLOWER DRIVE / M2685 - 2780H.2780 | 2 |
| 15 | 2235532 | BLOWER DRIVE / M2480 - M2680 | 1 |
| 16 | 2235180 | GENERATOR DRIVE | 1 |
| 19 | 1139233 | ENGINE - COMPRESSOR | 1 |
| 20 | 1139204 | ENGINE - FAN / M2480 - M2685 | 1 |
| 22 | 6210975 | COUNTERSHAFT - GRAIN TANK / M2480 | 1 |
| 23 | 6215257 | ENGINE - COUNTERSHAFT / M2480 | 1 |
| 25 | 088-007753.6-350 | COUNTERSHAFT - CHOPPER TRANSMISSION / W/M2480 | 1 |
| 26 | 1139259 | CHOPPER TRANSMISSION - CHOPPER / M2480 | 1 |
| 27 | 6210990 | GRAIN TANK DRIVE / + 437 M2580 - M2780H | 1 |
| 27 | 6210993 | GRAIN TANK DRIVE / + 437 M2480 | 1 |
