LEXION 520 MONTANA

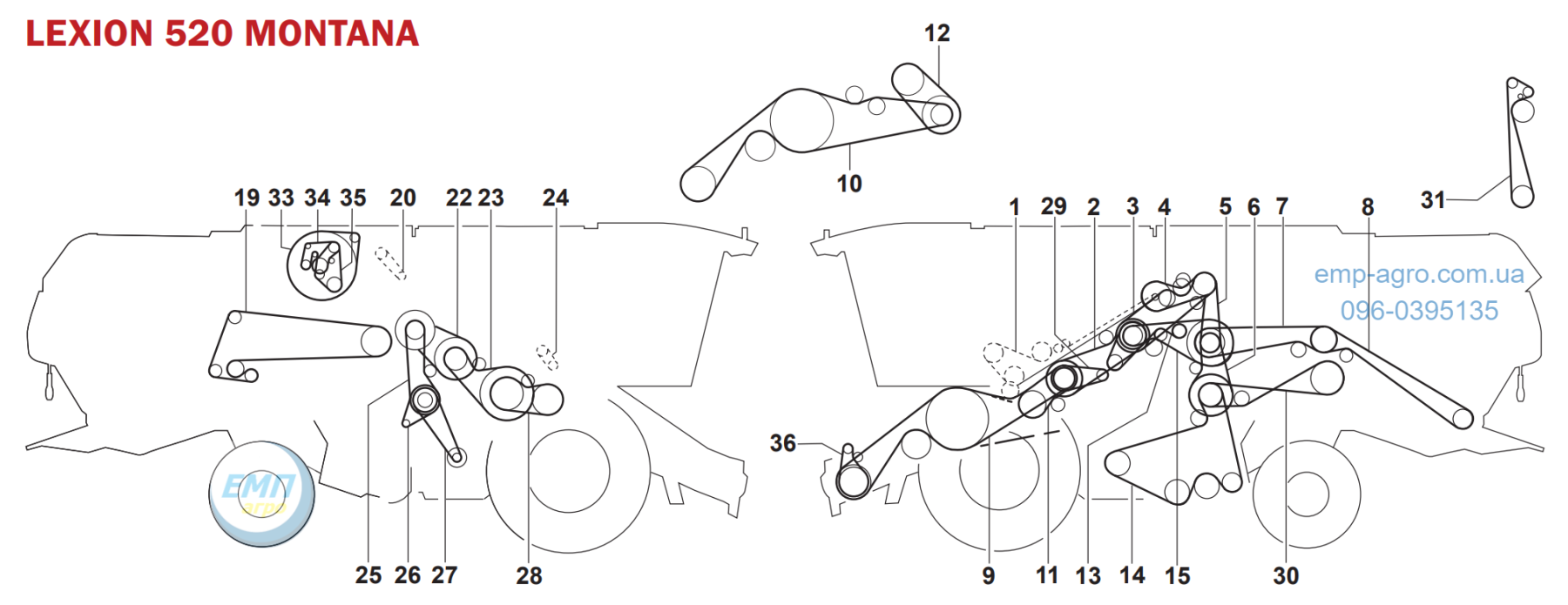

Схема розміщення ременів та ланцюгів комбайна CLAAS
Переглянути збільшене зображення→
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 1 | 755537.0 | GRAIN TANK UNLOADING | 1 |
| 1 | 758711.0 | EXTRA - WEAR PROOF | 1 |
| 2 | 644892.0 | CUTTERBAR DRIVE 1STE STAGE | 1 |
| 3 | 352371.1 | THRESHING MECHANISM DRIVE P02/540/541/670/671 | 1 |
| 3 | 352403.0 | THRESHING MECHANISM DRIVE P02/660/661 FROM NO. 58200137 | 1 |
| 3 | 667453.0 | THRESHING MECHANISM DRIVE P02/590/591 P02/660/661 | 1 |
| 4 | 667250.0 | GRAIN TANK UNLOADING | 1 |
| 5 | 667958.3 | CHOPPER DRIVE, 1STE STAGE AT MOTOR 3126B, C9 | 1 |
| 5 | 355696.0 | CHOPPER DRIVE, 1STE STAGE AT MOTOR C6.6 | 1 |
| 6 | 667252.0 | SIEVE PAN 2ND STAGE | 1 |
| 7 | 061700.1 | CHOPPER DRIVE, 2ND STAGE | 1 |
| 8 | 628888.0 | CHOPPER DRIVE, 3RD STAGE RIGID CHOPPER | 1 |
| 9 | 667454.1 | CUTTERBAR DRIVE, 2ND STAGE WITHOUT VARIABLE SPEED DRIVE | 2 |
| 10 | 667551.2 | CUTTERBAR DRIVE 3RD STAGE WITH VARIABLE SPEED DRIVE | 2 |
| 11 | 667249.0 | SYNCHRONOUS DRIVE | 1 |
| 12 | 667530.1 | CUTTERBAR VARIATOR | 1 |
| 13 | 746508.3 | CHAFF SPREADER | 1 |
| 14 | 667651.1 | CLEANING, 3RD STAGE | 1 |
| 15 | 644209.2 | CLEANING, 1STE STAGE | 1 |
| 19 | 628991.0 | FINGER ROLLER | 1 |
| 20 | 754315.1 | GRAIN ELEVATOR | 1 |
| 22 | 667248.0 | DRUM VARIATOR | 1 |
| 23 | 176442.1 | DRUM DRIVE | 1 |
| 24 | 642492.0 | RETURNS ELEVATOR | 1 |
| 25 | 746506.0 | FAN DRIVE | 4 |
| 26 | 644781.0 | SUCTION FAN | 1 |
| 27 | 667457.0 | FAN VARIATOR | 1 |
| 28 | 667251.1 | PRE - DRUM DRIVE | 1 |
| 29 | 829094.0 | HYDRAULIC REEL DRIVE | 1 |
| 30 | 667477.0 | STRAW WALKER DRIVE | 1 |
| 31 | 539443.0 | STRAW SPREADER | 1 |
| 33 | 545689.0 |
