LEXION 450 TERRA

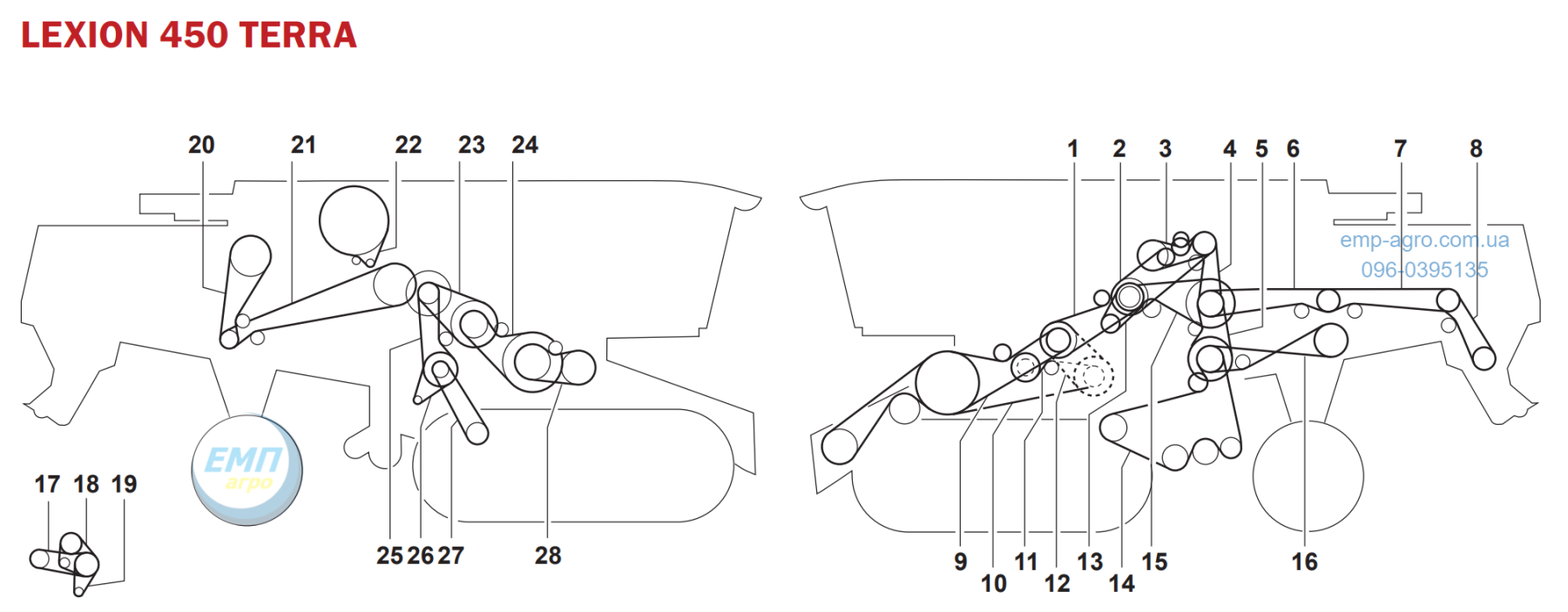

Схема розміщення ременів та ланцюгів комбайна CLAAS
Переглянути збільшене зображення→
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 1 | 667255.1 | 1STE STAGE CUTTERBAR | 1 |
| 2 | 667453.0 | THRESHING MECHANISM | 1 |
| 3 | 667250.0 | GRAIN TANK UNLOADING | 1 |
| 4 | 667958.3 | 1STE STAGE CHOPPER | 1 |
| 5 | 667252.0 | 2ND STAGE CLEANING | 1 |
| 6 | 061700.1 | 2ND STAGE CHOPPER | 1 |
| 7 | 061700.1 | 3RD STAGE CHOPPER | 1 |
| 8 | 661093.1 | 4TH STAGE CHOPPER | 1 |
| 9 | 667454.1 | 2ND STAGE CUTTERBAR WITHOUT VARIABLE SPEED | 2 |
| 10 | 667551.2 | 3RD STAGE CUTTERBAR WITH VARIABLE SPEED | 2 |
| 11 | 667249.0 | IMPELLER DRUM | 1 |
| 12 | 667530.1 | CUTTERBAR VARIABLE SPEED | 1 |
| 13 | 758719.0 | HYDRAULIC PUMP | 1 |
| 14 | 667651.1 | 3RD STAGE CLEANING | 1 |
| 15 | 644209.2 | 1STE STAGE CLEANING | 1 |
| 16 | 667477.0 | STRAW WALKER | 1 |
| 17 | 667560.1 | COMPRESSOR | 1 |
| 18 | 667242.0 | MOTOR FAN | 1 |
| 19 | 667456.0 | 1STE STAGE RADIATOR SCREEN | 1 |
| 20 | 667973.0 | REAR FEED RAKE | 1 |
| 21 | 667974.0 | FRONT FEED RAKE | 1 |
| 22 | 667561.1 | 2ND STAGE RADIATOR SCREEN | 1 |
| 23 | 667248.0 | DRUM VARIABLE SPEED DRIVE | 1 |
| 24 | 176442.1 | THRESHING DRUM FROM NO. 45800017 | 1 |
| 24 | 667458.0 | THRESHING DRUM TO NO. 45700016 | 1 |
| 24 | 667255.1 | THRESHING DRUM AT DISC D 593 MM OPTIONAL | 1 |
| 25 | 742026.2 | 1STE STAGE BLOWER | 1 |
| 26 | 667457.0 | FAN VARIABLE SPEED DRIVE | 1 |
| 27 | 667251.1 | ACCELERATOR | 1 |
| 28 | 644781.0 | SUCTION FAN | 1 |
