LEXION 410 II

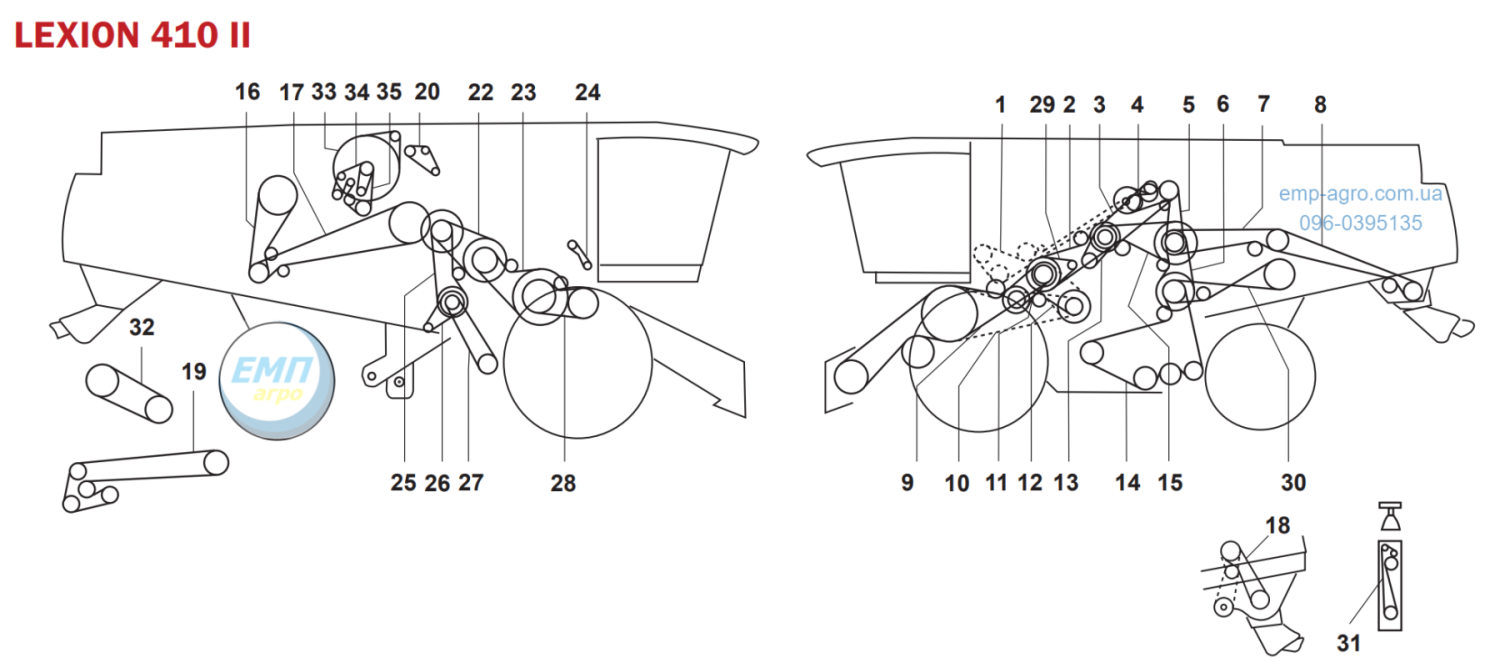

Схема розміщення ременів та ланцюгів комбайна CLAAS
Переглянути збільшене зображення→
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 1 | 755537.0 | GRAIN TANK UNLOADING | 1 |
| 1 | 758711.0 | EXTRA WEAR - PROOF | 1 |
| 2 | 667255.1 | CUTTERBAR DRIVE, 1STE STAGE | 1 |
| 3 | 352371.1 | THRESHING MECHANISM DRIVE | 1 |
| 4 | 667250.0 | GRAIN TANK UNLOADING | 1 |
| 5 | 667958.3 | CHOPPER DRIVE 1STE STAGE | 1 |
| 6 | 667252.0 | SIEVE PAN, 2ND STAGE | 1 |
| 7 | 667683.1 | CHOPPER DRIVE, 2ND STAGE | 1 |
| 8 | 667683.1 | CHOPPER DRIVE, 3RD STAGE ADJUSTABLE CHOPPER | 1 |
| 8 | 061701.2 | CHOPPER DRIVE, 3RD STAGE RIGID CHOPPER | 1 |
| 9 | 667454.1 | CUTTERBAR DRIVE, 2ND STAGE WITHOUT VARIABLE SPEED DRIVE | 2 |
| 10 | 667551.2 | CUTTERBAR DRIVE, 2ND STAGE WITH VARIABLE SPEED DRIVE | 2 |
| 11 | 667249.0 | SYNCHRONOUS DRIVE | 1 |
| 12 | 667530.1 | CUTTERBAR VARIATOR | 1 |
| 13 | 758719.0 | CHAFF SPREADER | 1 |
| 14 | 667651.1 | CLEANING, 3RD STAGE | 1 |
| 15 | 644209.2 | CLEANING, 1ST STAGE | 1 |
| 16 | 667973.0 | INTENSIVE SEPARATION SYSTEM, SHORT | 1 |
| 17 | 667974.0 | INTENSIVE SEPARATION SYSTEM, LONG | 1 |
| 18 | 667684.0 | CHOPPER DRIVE, 4TH STAGE | 1 |
| 19 | 509035.1 | FINGER ROLLER | 1 |
| 20 | 754315.1 | GRAIN ELEVATOR | 1 |
| 22 | 661427.0 | LEXION 410 | 1 |
| 23 | 644902.0 | LEXION 410 | 1 |
| 24 | 642492.0 | RETURNS ELEVATOR | 1 |
| 25 | 667957.0 | LEXION 410 | 1 |
| 26 | 644843.0 | LEXION 410 | 1 |
| 27 | 667457.0 | FAN VARIATOR | 1 |
| 28 | 667251.1 | PRE - DRUM DRIVE | 1 |
| 29 | 829094.0 | HYDRAULIC REEL DRIVE | 1 |
| 30 | 667477.0 | STRAW WALKER DRIVE | 1 |
| 31 | 539443.0 | STRAW SPREADER | 1 |
| 32 |
