COMMANDOR 116 CS

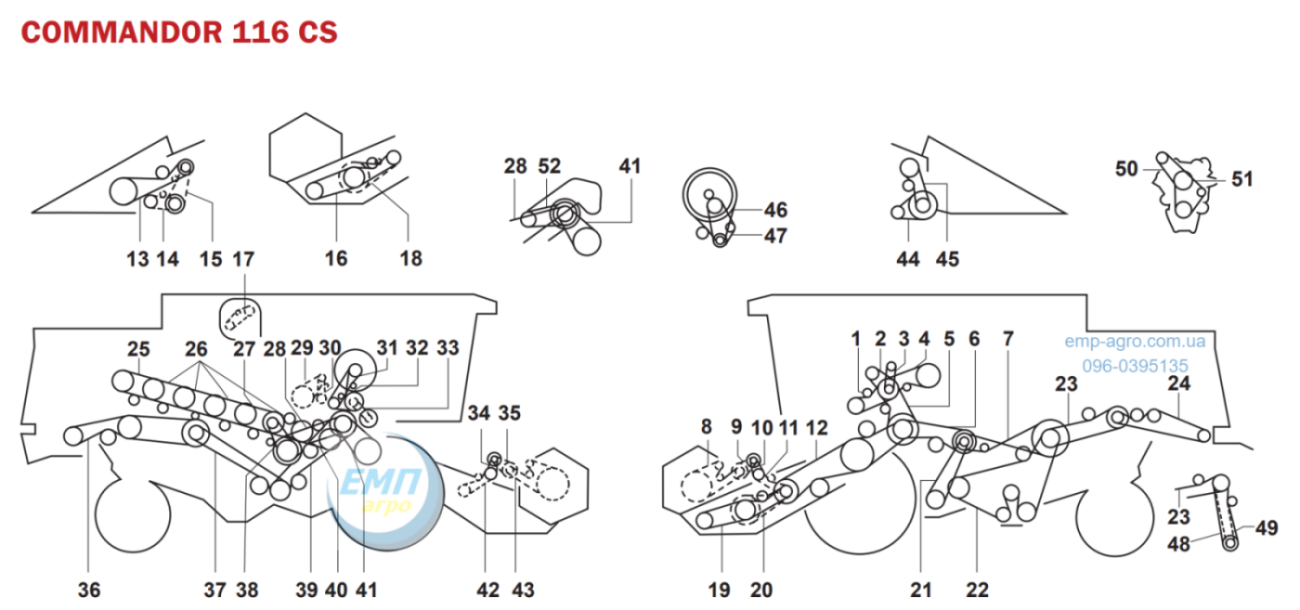

Схема розміщення ременів та ланцюгів комбайна CLAAS
Переглянути збільшене зображення→
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 1 | 661092.2 | GROUND DRIVE FROM NO. 15900371 | 1 |
| 1 | 644017.1 | TO NO. 15900370 | 1 |
| 2 | 633030.2 | HYDRAULIC PUMP FROM NO. 15900371 | 1 |
| 2 | 629002.1 | TO NO. 15900370 | 1 |
| 3 | 629908.1 | AIR CONDITIONER | 1 |
| 4 | 661093.1 | GRAIN TANK UNLOADING FROM NO. 15900371 | 1 |
| 4 | 629763.0 | TO NO. 15900370 | 1 |
| 5 | 644403.0 | INTERMEDIATE DRIVE THRESHING MECHANISM FROM NO. 15900371 | 1 |
| 5 | 644018.1 | TO NO. 15900370 | 1 |
| 6 | 603337.0 | BLOWER INTERMEDIATE DRIVE | 1 |
| 7 | 644141.1 | SIEVE PAN INTERMEDIATE DRIVE FROM NO. 15900371 | 1 |
| 7 | 603336.1 | TO NO. 15900370 | 1 |
| 8 | 650193.0 | AT 5.1 M CUTTERBAR | 1 |
| 9 | 670229.2 | AT 5.1 M CUTTERBAR | 1 |
| 10 | 670224.1 | AT 5.1 M CUTTERBAR | 1 |
| 11 | 650191.2 | AT 5.1 M CUTTERBAR | 1 |
| 12 | 644419.1 | SHAFTS DISTANCE 1306 MM FROM NO. 15900461 | 2 |
| 12 | 603430.1 | SHAFTS DISTANCE 1306 MM TO NO. 15900460 | 2 |
| 12 | 603017.3 | SHAFTS DISTANCE 1463 MM | 2 |
| 13 | 692149.0 | FOR CORN PICKER | 1 |
| 13 | 692150.0 | FOR CORN PICKER | 1 |
| 13 | 629142.0 | CORN PICKER FOLDING | 1 |
| 14 | 692166.0 | FOR CORN PICKER | 1 |
| 15 | 503445.0 | FOR CORN PICKER | 1 |
| 16 | 671013.1 | FROM 6.0 M CUTTERBAR | 1 |
| 17 | 646128.0 | GRAIN ELEVATOR FROM NO. 15900231 | 1 |
| 17 | 646011.0 | TO NO. 15900230 | 1 |
| 18 | 676277.0 | FROM 6.0 M CUTTERBAR AT N = 175 MIN-1 | 1 |
| 18 | 176933.0 | AT N = 144 MIN-1 | 1 |
| 19 | 713506.2 | AT 5.1 M CUTTERBAR | 1 |
| 20 | 650174.0 | AT 5.1 M CUTTERBAR | 1 |
| 21 | 603380.1 | FAN | 1 |
