TR 85

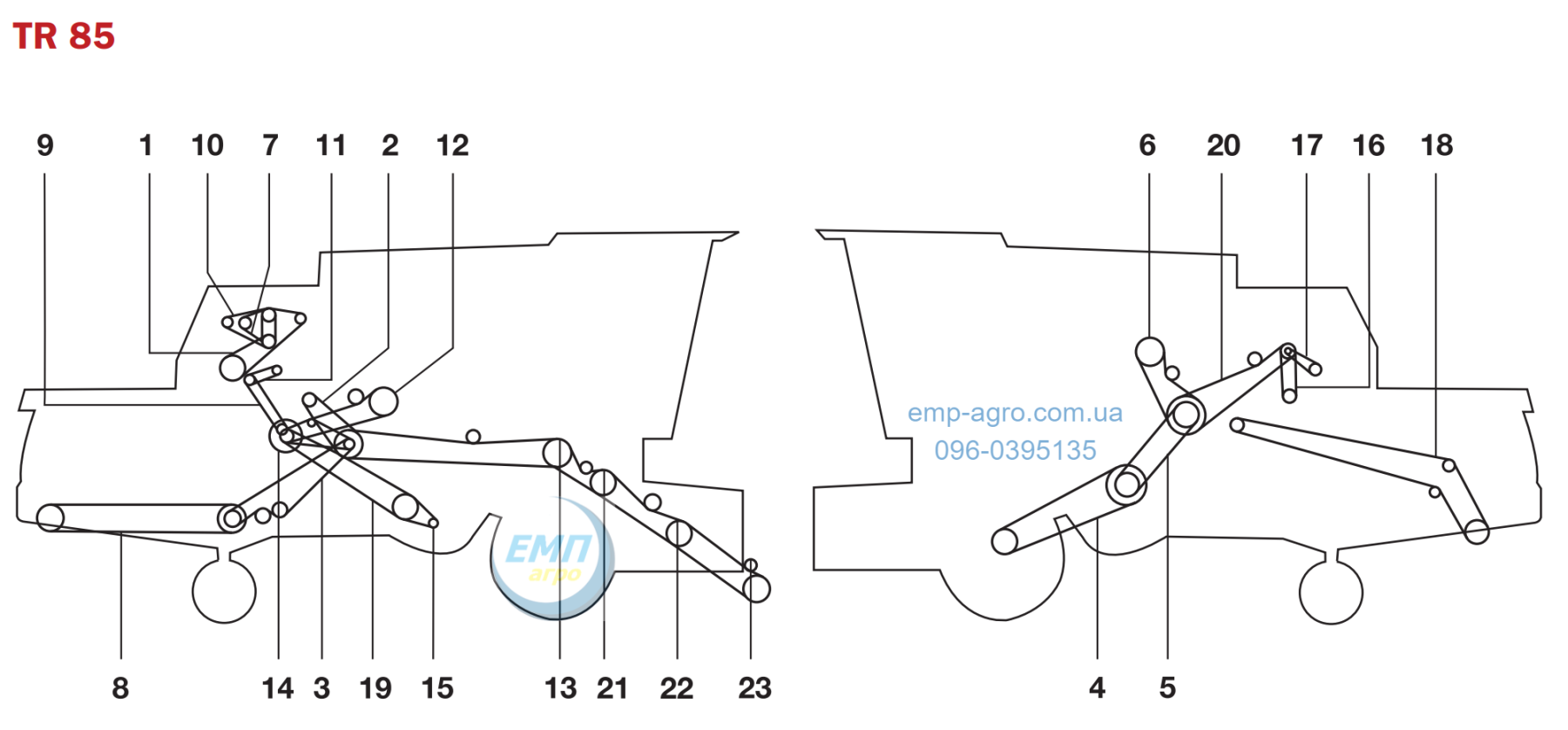

Схема розміщення ременів та ланцюгів комбайна NEW HOLLAND
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 2 | 637783 | ROTOR VARIATOR DRIVE - HIGH SPEED ROTOR | 1 |
| 2 | 717700 | ROTARY VARIATOR DRIVE | 1 |
| 2 | 640143 | ROTOR VARIATOR DRIVE - STANDARD SPEED ROTOR | 1 |
| 3 | 619748 | STRAW CHOPPER (FRONT) | 1 |
| 4 | 716414 | HYDROSTATIC TRACTION DRIVE (LOWER) | 1 |
| 4 | 634042 | HYDROSTATIC TRACTION DRIVE (LOWER) | 1 |
| 4 | 636645 | HYDROSTATIC TRACTION DRIVE (LOWER) | 1 |
| 5 | 716416 | HYDROSTATIC TRACTION DRIVE (UPPER) | 1 |
| 5 | 717700 | STANDARD TRACTION VARIATOR DRIVE (UPPER) | 1 |
| 5 | 254093 | STANDARD TRACTION VARIATOR DRIVE (UPPER) | 1 |
| 6 | 247782 | UNLOADING AUGER DRIVE | 1 |
| 7 | 647901 | ENGINE FAN (WITHOUT CATERPILLAR ENGINE) | 1 |
| 7 | 772654 | ENGINE FAN (FORD ENGINE) | 1 |
| 8 | 614040 | STRAW CHOPPER (REAR) | 1 |
| 9 | 610767 | ROTARY SCREEN - (LOWER) 65.75 | 1 |
| 9 | 612305 | ROTARY SCREEN - (LOWER) 68.3 | 1 |
| 11 | 716254 | ROTARY SCREEN (UPPER) | 1 |
| 12 | 703747 | CLEAN GRAIN ELEVATOR DRIVE | 1 |
| 13 | 246980 | HEADER DRIVE 167-9/32 | 1 |
| 13 | 682008 | HEADER DRIVE 193 | 1 |
| 14 | 621104 | DISCHARGE BEATER DRIVE | 1 |
| 15 | 624398 | CLEANING FAN - VARIATOR DRIVE 46 SLOW DOWN | 1 |
| 15 | 642569 | CLEANING FAN - VARIATOR DRIVE 58 STANDARD | 1 |
| 16 | 259477 | HYDROSTATIC CHARGE PUMP DRIVE | 1 |
| 17 | 259346 | AIR COMPRESSOR - 48 | 1 |
| 17 | 264557 | AIR COMPRESSOR - 52.75 | 1 |
| 17 | 80576776 | AIR COMPRESSOR - 54.5 | 1 |
| 18 | 246727 | STRAW CHOPPER DRIVE | 1 |
| 18 | 230143 | STRAW SPREADER DRIVE | 1 |
| 19 | 785415 | SHAKER SHOE DRIVE | 1 |
| 20 | 795009 | MAIN SHAFT DRIVE - STANDARD TRACTION | 1 |
| 20 | 246978 | MAIN SHAFT DRIVE | 1 |
| 21 | 620944 | FEEDER DRIVE | 1 |
| 22 | 621367 | FEEDER HOUSE FIXED SPEED | 2 |
| 22 | 630010 | FEEDER DRIVE VARIABLE SPEED | 1 |
| 23 | 699368 | FEEDER DRIVE VARIABLE SPEED | 1 |
| 23 | 632890 | FEEDER DRIVE VARIABLE SPEED | 1 |
