LEXION 540 - 560

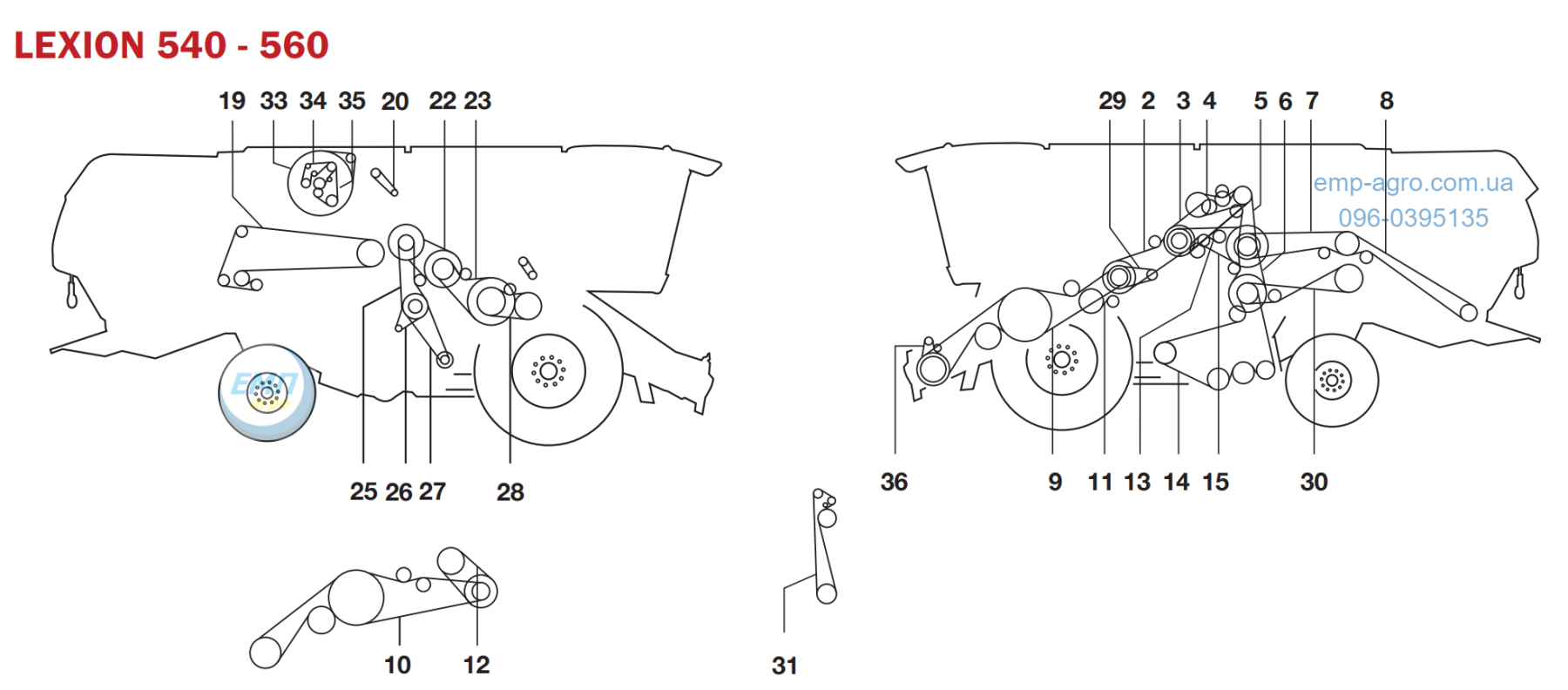

Схема розміщення ременів та ланцюгів комбайна CLAAS
Переглянути збільшене зображення→
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 2 | 644892.0 | CUTTERBAR DRIVE, 1STE STAGE | 1 |
| 3 | 667881.0 | THRESHING MECHANISM AT CATERPILLAR C13, C10 | 1 |
| 3 | 352403.0 | THRESHING MECHANISM ENGINE C9 | 1 |
| 3 | 667453.0 | THRESHING MECHANISM ENGINE 3126B, C6.6 | 1 |
| 4 | 667250.0 | DISCHARGE DRIVE GRAIN TANK | 1 |
| 5 | 667958.3 | CHOPPER DRIVE - 1ST STAGE AT MOTOR C13, C10, C9 AND 3126B | 1 |
| 5 | 355696.0 | CHOPPER DRIVE - 1ST STAGE AT MOTOR C6.6 | 1 |
| 6 | 667252.0 | SIEVE PAN DRIVE - 2ND STAGE | 1 |
| 7 | 061700.1 | CHOPPER DRIVE - 2ND STAGE | 1 |
| 8 | 628888.0 | CHOPPER DRIVE - 3RD STAGE RIGID CHOPPER | 1 |
| 9 | 667454.1 | CUTTERBAR DRIVE, 2ND STAGE WITHOUT VARIABLE SPEED DRIVE | 2 |
| 10 | 667551.2 | CUTTERBAR DRIVE, 3RD STAGE WITH VARIABLE SPEED DRIVE | 2 |
| 11 | 667249.0 | SYNCHRONOUS DRIVE | 1 |
| 12 | 667530.1 | CUTTERBAR DRIVE WITH VARIABLE SPEED DRIVE | 1 |
| 13 | 746508.3 | CHAFF SPREADER DRIVE | 1 |
| 14 | 667651.1 | CLEANING - 3RD STAGE | 1 |
| 15 | 644209.2 | CLEANING - 1ST STAGE | 1 |
| 19 | 628991.0 | FINGER ROLLER | 1 |
| 20 | 754315.1 | ELEVATOR DRIVE GRAIN | 1 |
| 22 | 667248.0 | DRUM DRIVE VARIABLE SPEED | 1 |
| 23 | 176442.1 | DRUM DRIVE | 1 |
| 25 | 746506.0 | FAN DRIVE | 4 |
| 26 | 644781.0 | SUCTION FAN | 1 |
| 27 | 667457.0 | FAN DRIVE VARIABLE SPEED | 1 |
| 28 | 667251.1 | PRE-DRUM DRIVE | 1 |
| 29 | 829094.0 | HYDRAULIC REEL PUMP DRIVE | 1 |
| 30 | 667477.0 | STRAW WALKER DRIVE | 1 |
| 31 | 539443.0 | STRAW SPREADER DRIVE | 1 |
| 33 | 545689.0 | RADIATOR SCREEN - 2ND STAGE | 1 |
| 34 | 796786.0 | ENGINE C9 EMISSION STANDARD 2 | 1 |
| 34 | 796474.0 | ENGINE 3126 B | 1 |
| 35 | 628964.1 | FAN DRIVE - ENGINE C10, C13 (FROM NR. 58401487) | 1 |
