915

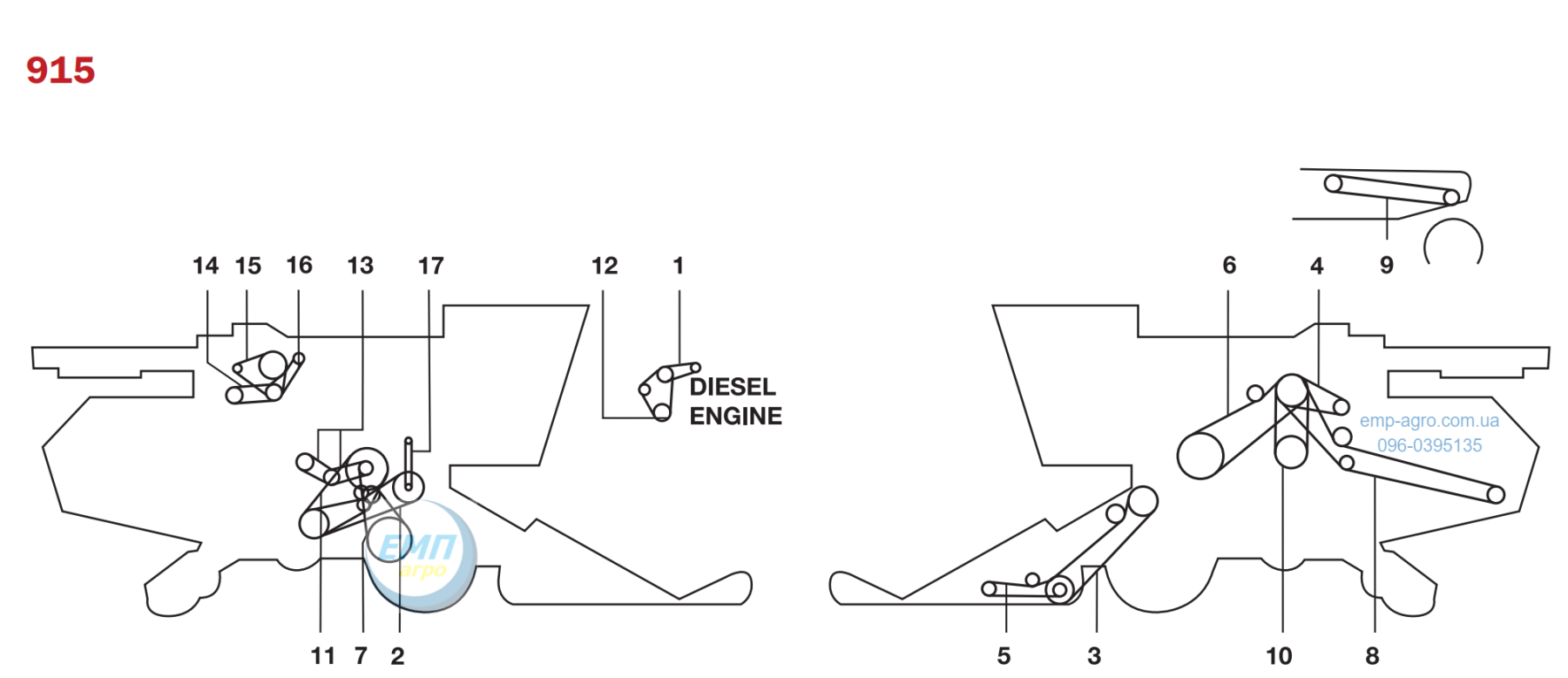

Схема розміщення ременів та ланцюгів комбайна CASE INTL. HARVESTER
Переглянути збільшене зображення→
Увага!!! Натисніть на посилання в колонці ОЕМ-номер для отримання більш детальної інформації
| № | ОЕМ-номер | Застосування | шт. |
| 0 | 160871C1 | STRAW CHOPPER JACKSHAFT DRIVE | 1 |
| 0 | 168725C1 | ROTARY AIR SCREEN DRIVE | 1 |
| 0 | 172360C1 | ROTARY AIR SCREEN DRIVE | 1 |
| 0 | 38331K | ROTARY AIR SCREEN DRIVE | 1 |
| 0 | 633728R2 | FEEDER FAST SPEED FOR BOLT ATT. FEEDER | 1 |
| 2 | 174509C1 | CYLINDER DRIVE | 1 |
| 3 | 176565C1 | FEEDER JACKSHAFT DRIVE | 1 |
| 3 | 176566C1 | FEEDER JACKSHAFT DRIVE | 1 |
| 3 | 176567C1 | FEEDER JACKSHAFT DRIVE | 1 |
| 3 | 176576C1 | FEEDER JACKSHAFT DRIVE | 1 |
| 3 | 176577C1 | FEEDER JACKSHAFT DRIVE | 1 |
| 4 | 179007C1 | HYDRAULIC REEL PUMP DRIVE (DIESEL ENGINE) | 1 |
| 5 | 178019C1 | KNIFE DRIVE | 1 |
| 6 | 166598C2 | SEPARATOR DRIVE (GAS ENGINE) | 1 |
| 6 | 168665C2 | SEPARATOR DRIVE (DIESEL ENGINE) | 1 |
| 7 | 564494R2 | SHAKER SHAFT DRIVE 265 RPM | 1 |
| 7 | 632702R1 | SHAKER SHAFT DRIVE 280 RPM | 1 |
| 8 | 160870C1 | STRAW CHOPPER DRIVE | 1 |
| 8 | 174642C1 | STRAW CHOPPER DRIVE | 1 |
| 8 | 177499C1 | STRAW CHOPPER DRIVE | 1 |
| 9 | 196371C1 | STRAW SPREADER DRIVE | 1 |
| 9 | 161821C1 | STRAW SPREADER DRIVE | 1 |
| 10 | 160173C1 | UNLOADING JACKSHAFT DRIVE | 1 |
| 11 | 164006C1 | CYLINDER DRIVE VARIABLE SPEED | 1 |
| 12 | 528419R91 | ALTERNATOR, FAN AND WATERPUMP (DIESEL ONLY) | 1 |
| 12 | 537072R92 | ALTERNATOR, FAN AND WATERPUMP (WITHOUT 414 ENGINE) | 2 |
| 13 | 164999C92 | SEPARATOR FAN DRIVE | 1 |
| 15 | 402253R91 | ALTERNATOR, FAN AND WATERPUMP DRIVE (WITHOUT AIR COMPRESSOR) | 1 |
| 16 | 532031R2 | GOVERNOR DRIVE | 1 |
| 17 | 167099C1 | CYLINDER DRIVE | 1 |
